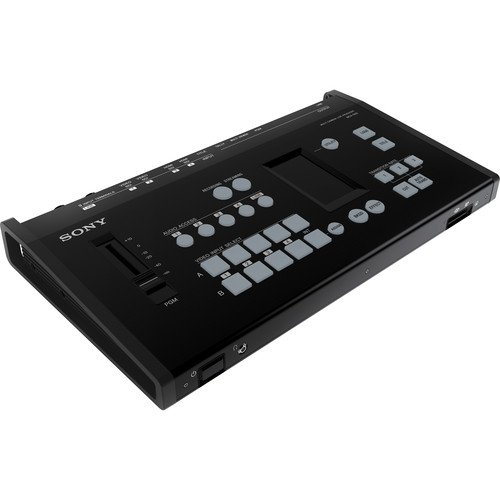

Sony MCX-500
Availability: in stock
Quick Overview
Sony MCX-500 4-Input Global Production Streaming/Recording Switcher
Mô tả
- 4 x Primary, 1 x Title Input Switcher
- NTSC/PAL, HD Input Supported
- Individual Frame Synchronizer per Input
- Internal 1080i Processing
- Hardware Buttons and LCD Touchscreen
- Cut, Mix, Wipe, and Keyer Effects
- Built-In Live Streaming Encoder
- Record Program to SD Card Slot in AVCHD
- Built-In Audio Mixer
- Mac, PC, and Tablet Integration
Sony MCX-500 Specs
| Signal System | 1080i/p: 59.94/50 |
| Recording | Format: AVCHD Media: Memory Stick PRO Duo, SDHC |
| Streaming | Protocol: MPEG-2 TS/RTMP |
| Input Connectors | 4 x 3G/HD/SD-SDI BNC, 75 Ohms 2 x HDMI Type A 2 x Composite BNC, 75 Ohms, 1.0 Vpp, negative sync 1 x Title: D-Sub 15-pin, female |
| Output Connectors | Program 1 x HD-SDI BNC (Program), 75 Ohms, 1.5 Gbps, 270 Mbps 1 x HDMI Type A 1 x Composite BNC, 75 Ohms, 1.0 Vpp, negative sync Multiview |
| Audio Input | Embedded SDI/HDMI: 48 kHz, 16-bit Analog |
| Audio Output | Embedded SDI/HDMI: 48 kHz, 16-bit Analog Headphone |
| Interface | LAN 2 x RJ-45 100/1000BASE-TX (PC UI streaming) USB 2.0 Option Tally |
| Dimensions | 14.3 x 1.7 x 8.1″ / 36.2 x 4.4 x 20.6 cm |
| Weight | 4.52 lb / 2.05 kg |
