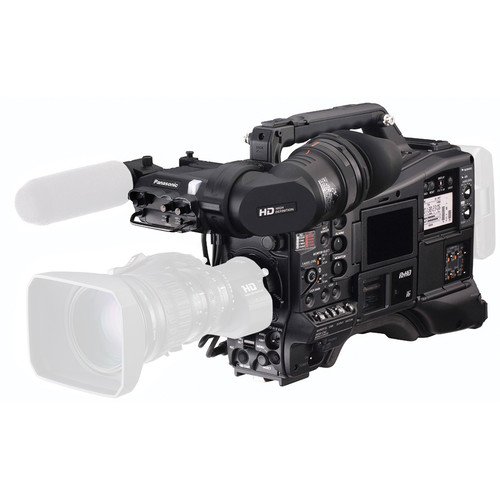

AJ-PX5000G

AJ-PX5000G

AJ-PX5000G

Rating:

Availability: in stock

Quick Overview

2/3″ 2.2MP MOS Image Sensor
Full-HD Resolution of 1920 x 1080
Built-In P2, microP2 & SD Card Slots
NTSC & PAL Compatible Frame Rates
Flip Out 3.45″ LCD Screen
Pre-Recording & Loop Recording
AVC-ULTRA Recording/Dual Codec Recording
Image Control & Camera Tools
3G-SDI Input/Output &Wireless Slot
Wired LAN Remote Connector & USB 3 Port

Mô tả
Đánh giá (0)

Mô tả

Panasonic AJ-PX5000 Specs

Imaging
Image Sensor	3-Chip 2/3″ MOS Sensor
Sensor Resolution	2.2 x
Horizontal Resolution (TV Lines)	1000 TV Lines or More
Gain	-3 to 30 dB (Native) -6 to 34 dB (Expanded)
Signal-to-Noise Ratio	62 dB
Minimum Illumination	0.0004 lux

Camera
Lens Mount	B4 Mount
Shutter Speed	1/1/24 to 1/1/7200 sec
Shutter Angle	3 to 360°
Built-In ND Filter	Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Recording Media	2 x P2 Card Slots 2 x microP2 Card Slots

Recording
Broadcast System Compatibility	NTSC, PAL
Recording Modes	AVC-LongG: 1920 x 1080 at 23.98/25/29.97/50/59.94 fps (12 to 50 Mb/s) AVC-Intra: 1920 x 1080 at 23.98/25/29.97/50/59.94 fps (50 to 100 Mb/s) DVCPRO: 1920 x 1080 at 23.98/25/29.97 fps (100 Mb/s)
Audio Recording	4-Channel 24-Bit 48 kHz

Interfaces
Video Connectors	1 x BNC (HD-SDI) Input 2 x BNC (HD-SDI) Output 1 x BNC (Composite) Output 1 x HDMI Input
Audio Connectors	2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input 1 x 5-Pin XLR Mic Level (+48 V Phantom Power) Input 2 x 1/8″ (3.5 mm) Stereo Headphone Output
Other I/O	1 x BNC Genlock 1 x BNC Timecode Input 1 x BNC Timecode Output 1 x 10-Pin RCU Control 1 x 12-Pin Lens Control 1 x 20-Pin Monitor Output 1 x RJ45 LAN 1 x USB Type-B 2 x USB Type-A 1 x 25-Pin D-sub Wireless Receiver

Display
Display Type	LCD
Screen Size	3.45″
Screen Resolution	920,000 Dots

Power
Power Connectors	1 x 4-Pin XLR (11 to 17 VDC) Input 1 x 4-Pin XLR (11 to 17 VDC up to1.5 A) Output 1 x 2-Pin Light (11 to 17 VDC up to4.5 A) Output
Power Consumption	29 W

Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	10 to 85%

General
Dimensions	5.8 x 10.5 x 13.5″ / 147 x 267 x 342 mm
Weight	7.5 lb / 3.4 kg
