Mô tả

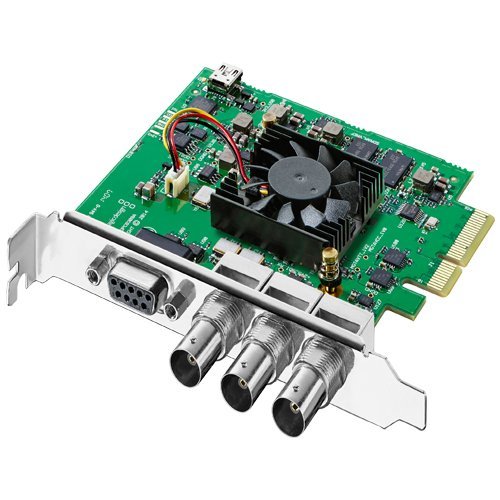

Cạc Blackmagic Design DeckLink SDI 4K
TÍNH NĂNG NỔI BẬT
● SD/HD/3G/6G-SDI Input/Output
● PCIe Interface
● UHD / DCI 4K 4:2:2 by Single-Link 6G-SDI
● 1080p 4:4:4 by Single-Link 3G-SDI
● Xử lý 10-bit
● RS-422 Deck Control
● Internal Keying
● Input tham chiếu
● Chuyển đổi Down/Up/Cross
● Tương thích các hệ điều hành Mac OS X, Windows, và Linux
Connections
SDI Video Input
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
SDI Video Output
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
SDI Audio Input
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
SDI Audio Output
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
Sync Input
Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD, 2K or UHD format.
Device Control
Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Computer Interface
PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express Slots.
Codecs
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.
Software
Software Included
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS X and Windows. Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows and Linux. Please check the Support pages to see the full system requirements.
Software Applications
DaVinci Resolve
Fusion
Final Cut Pro X
Premiere Pro CC
Avid Media Composer
After Effects CC
Avid Pro Tools
Steinberg Cubase
Autodesk Smoke
Photoshop CCOther supported applications include: Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.
Video Standards
SD Format Support
525i29.97 NTSC, 625i25 PAL
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support
2K 23.98p, 2K 24p, 2K 25p
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Format Support
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support
VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.
Audio Sampling
Television standard sample rate of 48 kHz at 24 bit.
Video Sampling
4:2:2 and 4:4:4 (4K is 4:2:2)
Color Precision
10-bit
Color Space
REC 601, REC 709
Multiple Rate support
SDI video connections are switchable between SD/HD/2K and UHD.
Processing
Colorspace Conversion
Hardware based real time.
HD Down Conversion
Built in, high quality hardware down converter outputs HD or SD on SDI output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
HD Up Conversion
Software based up conversion from SD to 720HD or 1080HD on capture. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom.
Cross Conversion
Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.
Real Time Effects
Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer™ internal effects. DaVinci Resolve.
Operating Systems
Mac OS X 10.11 El Capitan,macOS Sierra or later.
Windows 7, 8.1 and 10, all 64-bit.
LinuxEMC Certifications
FCC, CE and C-Tick
Physical Specifications
Environmental Specifications
Operating Temperature
5° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What’s Included
DeckLink SDI 4K
SD card with software and manual
Warranty
1 Year Limited Manufacturer’s Warranty.
