Bộ Livestream HD550 4K
Quick Overview
- 5x SDI or HDMI physical 4K inputs
- 1x SDI or HDMI physical 4K output
- The only switcher with built-in bonded transmission
- 2x balanced XLR inputs, Analog audio input
- Integrated 17” (1920×1200) HD LED Monitor
- One year Livestream Premium phone support
- Built-in chroma-key, graphics and live streaming
- All the features of Livestream Studio 4 + free updates
- Protective carry-on style protective bag
- Made in USA
Mô tả
Livestream HD550 4K
Bộ Livestream All In One chuyên nghiệp chuẩn HD/4K của Mỹ. Sản phẩm do Công ty PNO phân phối tại Việt Nam. Tất cả trong một Valy xách tay nhỏ gọn rất tiện lợi.
– Tích hợp nhiều công cụ, công nghệ hiện đại như: Switch, NDI, CG, Chromakey, Recoder, đồng hồ, logo, playback, Audio, Graphics, Lower third kết mối trực tiếp với điện thoại Smartphone, máy tính bảng, laptop, máy tính PC, Tally, Webcam qua đường USB…
– Truyền trên nhiều nền tảng(Flatform) khác nhau như: Vimeo, Livestream, Facebook Live, Periscope, Ustream, YouTube Live, Akamai, Wowza Media Server, Twitch or any other RTMP compatible service…
– Hỗ trợ 5 cổng vào SDI hoặc HDMI theo chuẩn HD/4K
– Ngõ ra SDI và HDMI
– Tích hợp màn hình Integrated 17” (1920×1200) HD LED LCD
– Tích hợp 2 cổng mạng và kết nối Wifi
The Livestream Studio HD550 4K by Livestream is compact and portable all-in-one live production switcher. Pre-installed with Livestream Studio, this live production switcher is a easy to carry anywhere with its custom carry bag. Take your HD550 4K everywhere, including on a plane.
The Livestream Studio HD550 4K features include 2 media tracks, 4 ISO recorders (with external drives), 20 hours of internal broadcast recording (expandable with external drives), 2TB of internal storage, 10 remote cameras and 3 Graphic tracks. This all-in-one portable production switcher comes with five 4K camera inputs and one 4K video output.
Connect five HDMI or SDI sources in 4K resolution and apply effects with on-screen T-Bar. Use adjustable transitions. Use the HD550 4K for on the go live production or live to tape production, and network and local television programming with or without streaming live to the web.
Video Input and Output
- Five switchable 4K HDMI / SDI video inputs
- One switchable 4K HDMI / SDI video outputs
- 5 Stereo / 40 Mono SDI embedded audio switchable inputs
- 1/8″ analog audio input
- 1/8″ analog audio monitoring output
- Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream, and headphones
- Audio PPM overlay with peak hold feature on all inputs and outputs
- 4K
- 1080p30, 1080PsF30, 1080p29.97, 1080PsF29.97, 1080p25, 1080PsF25, 1080p24, 1080PsF24, 1080p23.98, 1080PsF23.98
- 1080i60, 1080i59.94, 1080i50
- 720p60, 720p59.94, 720p50
- 625/25 PAL, 525/29.97 NTSC
- AVI Motion JPEG with uncompressed Audio
- Up to 40 hours of recording 100Mbps AVI MJPEG at 1080i resolution with internal 2TB Samsung EVO SSD
- Multiple simultaneous bit-rates, including mobile quality for playback over 3G on mobile devices
- 7 digital media video and graphics playback
- 2 DDRs (video clip playback with built-in transcoder)
Specifications
The Livestream Studio HD550 4K by Livestream is compact and portable all-in-one live production switcher. Pre-installed with Livestream Studio, this live production switcher is a easy to carry anywhere with its custom carry bag. Take your HD550 4K everywhere, including on a plane.
The Livestream Studio HD550 4K features include 2 media tracks, 4 ISO recorders (with external drives), 20 hours of internal broadcast recording (expandable with external drives), 2TB of internal storage, 10 remote cameras and 3 Graphic tracks. This all-in-one portable production switcher comes with five 4K camera inputs and one 4K video output.
Connect five HDMI or SDI sources in 4K resolution and apply effects with on-screen T-Bar. Use adjustable transitions. Use the HD550 4K for on the go live production or live to tape production, and network and local television programming with or without streaming live to the web.
Video Input and Output
- Five switchable 4K HDMI / SDI video inputs
- One switchable 4K HDMI / SDI video outputs
- 5 Stereo / 40 Mono SDI embedded audio switchable inputs
- 1/8″ analog audio input
- 1/8″ analog audio monitoring output
- Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream, and headphones
- Audio PPM overlay with peak hold feature on all inputs and outputs
- 4K
- 1080p30, 1080PsF30, 1080p29.97, 1080PsF29.97, 1080p25, 1080PsF25, 1080p24, 1080PsF24, 1080p23.98, 1080PsF23.98
- 1080i60, 1080i59.94, 1080i50
- 720p60, 720p59.94, 720p50
- 625/25 PAL, 525/29.97 NTSC
- AVI Motion JPEG with uncompressed Audio
- Up to 40 hours of recording 100Mbps AVI MJPEG at 1080i resolution with internal 2TB Samsung EVO SSD
- Multiple simultaneous bit-rates, including mobile quality for playback over 3G on mobile devices
- 7 digital media video and graphics playback
- 2 DDRs (video clip playback with built-in transcoder)
Livestream Studio HD550 4K – Portable Live Production Switcher
| Built-In Input/Output Cards
| 5x Blackmagic Design DeckLink Mini 4K Recorders (PCI) 1x Blackmagic Design DeckLink Mini 4K Monitor (PCI) |
| Input | Switchable 5x HDMI / SDI Switchable 5x Stereo / 40x Mono HD-SDI embedded audio 1x 1/8″ analog audio 2x balanced XLR |
| Output | 1x SDI/HDMI switchable 1x 1/8″ analog audio monitoring |
| Supported Formats | 4K, 1080p30, 1080PsF30, 1080p29.97, 1080PsF29.97, 1080p25, 1080PsF25, 1080p24, 1080PsF24, 1080p23.98, 1080PsF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 625/25 PAL, 525/29.97 NTSC |
| Sampling | 4:2:2 |
| Color Depth | 10 bit (REC 601, REC 709) |
| Audio | 48 kHz, 24-bit |
| Genlock | REF IN/Genlock (requires genlocking the two Blackmagic Design cards via two separate connectors) |
| Display | Integrated 17″ (43 cm) 1920 x 1200 HD LED LCD |
| Streaming | HD live streaming via gigabit/100/10 built-in Ethernet |
| Recording | ~40 hours at 1080i using 2 TB built-in SSD hard drive set to record at 100 Mbps AVI MJPEG |
| Processor | Intel Core i7 6900K Broadwell-E Eight-Core 20 MB cache LGA 2011-v4, 140W Desktop Processor |
| RAM | 64 GB DDR4 2133 MHz RAM |
| Hard Drive | 2 TB Samsung 850 EVO SSD |
| Graphics Card | NVIDIA GeForce GT 730 |
| Operating System | Windows 10 64-bit or higher |
| Dimensions | 14.8 x 17.3 x 3″ on top / 4.2″ on bottom (38 x 44 x 7.6 cm top / 10.7 cm on bottom) |
| Weight | 19 lb (8.6 kg) |
| Manufactured | Made in USA |
- Livestream Studio HD550 4K
- Pre-Installed Livestream Studio Software

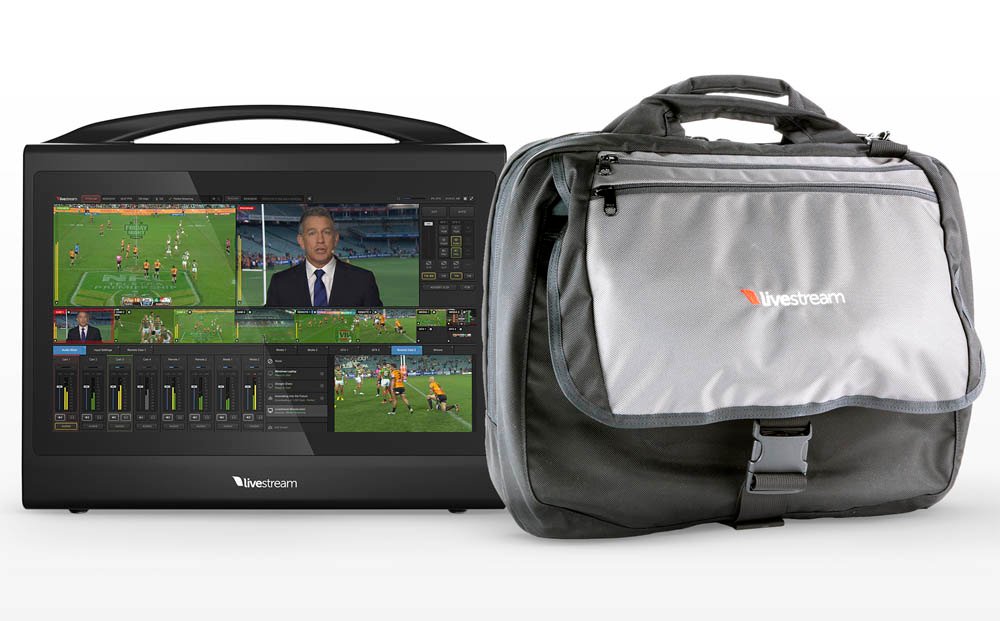

- Tom Bihn protective carry-on style bag
- Power cable
- Livestream Studio Keyboard
- Mouse
- Livestream Mousepad
- Rubber Feet
- Input card documentation and driver CD
- Warranty Info
