Mô tả

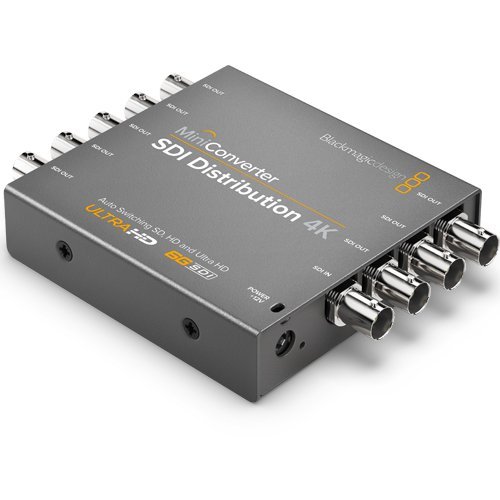

Bộ chia tín hiệu Mini Converter SDI Distribution 4K
TÍNH NĂNG NỔI BẬT
● 1 cổng SD/HD/3G/6G-SDI Input
● 8 cổng SD/HD/3G/6G-SDI Output
● Re-Clocked Output
● Hỗ trợ tín hiệu SD, HD, UHD 4K và DCI 4K
● Tự động nhận dạng tín hiệu đầu vào
● Ancillary Data và Embedded Audio
● Hỗ trợ tín hiệu ASI
● Điều khiển thông qua DIP Switch và phần mềm
● Cổng USB 2.0 để cập nhật firmware
● Nguồn 12V
Connections
SDI Video Input
Switchable between SD, HD and
6G-SDI.
Reclocking
Yes
SDI Video Output
8 outputs automatically match the SDI video input.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI.
Standards
SD Format Support
525i59.94 NTSC, 625i50 PAL
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K 25PsF
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Format Support
4K DCI 24p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081
SDI Video Rates
SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects SD, HD or 6G-SDI.
ASI Support
Yes
Operating Systems
Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
4.80 Watts
Operational Voltage Range
12 – 31V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What’s Included
Mini Converter SDI Distribution 4K
Software CD
12V universal power supply with international socket adapters
Warranty
1 Year Limited Manufacturer’s Warranty.
